Did you know solar power usage grew almost 90% in just one recent year? More people than ever are switching to solar energy. But are all solar panels equal?

With numerous options on the market, understanding the differences between panel types is crucial for making informed decisions. Your choice affects energy production, installation costs, and system longevity.

In this post, you'll learn about monocrystalline, polycrystalline, and thin-film solar panels. We'll compare their efficiency ratings, appearance, cost considerations, and ideal applications. You'll discover emerging technologies like PERC, perovskite, and transparent solar solutions too.


Monocrystalline silicon solar panels advantage

off-Grid 150000 Watt Solar Panel System for Home Use


What are Solar Panels?

Solar panels are innovative devices designed to harness energy from the sun and convert it into usable electricity. These rectangular modules typically appear on rooftops, in solar farms, or as portable units, silently working to capture one of our most abundant renewable resources.

The Photovoltaic Effect Explained

At the heart of every solar panel is a collection of photovoltaic (PV) cells. These cells perform the crucial task of converting sunlight directly into electricity through what scientists call the "Photovoltaic Effect." When sunlight (composed of particles called photons) strikes the surface of these cells, it initiates a fascinating chain reaction:

  1. Photons hit the solar cell surface

  2. Silicon atoms absorb these photons

  3. Electrons are knocked loose from the silicon atoms

  4. These free electrons create an electric current

  5. The current flows through busbars and fingers made of silver

  6. This electricity is then captured and converted for household or commercial use

Most standard solar panels contain either 60 or 72 individual solar cells, with typical dimensions of 1.6m x 1m or 2m x 1m respectively.

Key Components of Solar Cells

Component Role in Solar Cell
Silicon Acts as the primary semiconductor material that absorbs sunlight
Phosphorus Provides negative charge (N-type layer) and creates free electrons
Boron Provides positive charge (P-type layer) and creates "holes" for electrons
Silver Busbars Conduct electricity across and out of the cell
Anti-reflective Coating Maximizes sunlight absorption by reducing reflection

The junction between the phosphorus-treated (negative) and boron-treated (positive) silicon layers creates an electric field. When photons knock electrons free, this electric field pushes them in a directional flow, creating usable electricity.


Main Categories of Solar Panels

When you're ready to switch to solar energy, understanding the main types of solar panels helps you select the best fit for your home or business. Each type has unique characteristics, efficiency levels, and price points. Let’s briefly explore four major categories:


Types at a Glance

The solar panel market features these main technologies:

  • Monocrystalline Solar Panels: Premium efficiency with distinctive black appearance

  • Polycrystalline Solar Panels: Budget-friendly option with blue, speckled look

  • PERC Solar Panels: Enhanced monocrystalline panels with additional reflective layer

  • Thin-film Solar Panels: Flexible, lightweight panels with various semiconductor materials

Monocrystalline panels, made from single crystal silicon using the Czochralski method, offer the highest efficiency commercially available. Their premium performance comes with a higher price tag but delivers superior results in limited space.

Polycrystalline panels contain multiple silicon crystals, giving them a distinctive blue, marbled appearance. While slightly less efficient than monocrystalline options, they provide a more affordable entry point to solar energy.

PERC technology enhances traditional solar cells by adding a reflective layer on the back surface, allowing unabsorbed light a second chance to be converted into electricity. This innovation boosts efficiency without drastically increasing costs.

Thin-film panels abandon the traditional silicon wafer construction, instead depositing thin layers of photovoltaic materials onto substrates like glass or metal. While less efficient, they offer flexibility, lightness, and unique application possibilities not available with crystalline options.



Monocrystalline Solar Panels

Monocrystalline solar panels are highly efficient solar modules made from single-crystal silicon. These panels stand out due to their unique manufacturing method known as the Czochralski method. This involves dipping a small silicon crystal into molten silicon, slowly pulling it upward to form one continuous, uniform crystal. This single-crystal structure allows electrons to flow smoothly, boosting the panel's overall efficiency.

Monocrystalline silicon solar panels

Types & Innovations within Monocrystalline Panels

Several innovations have evolved within the monocrystalline category:

  • Traditional Monocrystalline: The original design with whole silicon cells in a uniform arrangement

  • Half-cut Cells: Cells cut in half, creating two separate power-producing sections that continue generating electricity even when partially shaded

  • Mono-PERC: Enhanced panels featuring an additional reflective layer that allows unabsorbed light to be captured, significantly boosting efficiency

  • N-type vs. P-type Cells:

    • N-type: Doped with phosphorus, offering higher efficiency and better durability against degradation.

    • P-type: More common, doped with boron, slightly lower cost but susceptible to quicker degradation.

Features and Performance

Aspect Performance Details
Efficiency Range 17-22% (standard); up to 25% (premium models)
Power Output 320-375W (typical); up to 540W (Mono-PERC)
Lifespan 30-40 years with minimal degradation
Temperature Coefficient Superior heat resistance; maintains efficiency at higher temperatures

Advantages:

  • High energy efficiency and excellent power generation capability

  • Outstanding durability, often lasting 30-40 years

  • Superior heat resistance, maintaining efficiency in hot conditions

  • Space-saving design due to higher efficiency

Disadvantages:

  • Higher upfront investment compared to other types

  • Manufacturing process consumes significant energy, creating higher environmental impact

  • Production generates considerable waste material, raising sustainability concerns

Appearance and Aesthetics

Monocrystalline panels feature a distinctive black or dark blue appearance with octagonal-shaped cells. The uniform coloring results from how sunlight interacts with pure silicon, creating a sleek, modern look preferred by many homeowners. Manufacturers now offer customization options including:

  • Black back sheets and frames for seamless integration

  • Various frame color options (typically black or silver)

  • Reduced visible busbars for cleaner appearance

Cost Analysis

While monocrystalline panels command a premium price (approximately $0.05 per watt higher than polycrystalline), this gap has narrowed significantly in recent years. The higher initial investment typically delivers stronger returns through:

  1. Greater power generation per square foot

  2. Extended operational lifespan

  3. Better performance in real-world conditions

  4. Stronger warranties (typically 25+ years)


Polycrystalline Solar Panels

Polycrystalline solar panels represent one of the most widely deployed solar technologies, offering a balance between performance and affordability for residential and commercial applications.

2 - Monocrystalline Solar Panels and Polycrystalline Solar Panels

Unlike their monocrystalline counterparts, polycrystalline panels (sometimes called "multicrystalline panels") feature multiple silicon crystals in each cell. Their manufacturing process is distinctly different – manufacturers melt raw silicon fragments and pour them into square molds. As the silicon cools, multiple crystals form within each wafer, creating a characteristic structure that affects both appearance and performance.

The production method is:

  1. Silicon fragments are melted in large vats

  2. The molten silicon is poured into square molds

  3. The material cools and forms multiple crystal structures

  4. The solidified block is cut into square wafers

  5. Wafers are assembled into a solar panel with 60-72 cells

Features and Performance

Polycrystalline panels deliver solid, mid-tier performance suitable for many applications:

Characteristic Specification Comparison to Monocrystalline
Efficiency Range 15-17% 2-5% lower
Typical Power Output 240-300W 20-80W lower
Temperature Coefficient Moderate Less heat resistant
Lifespan 25-30 years 5-10 years shorter

Key Advantages:

  • More affordable initial purchase price

  • Simpler manufacturing process requires less energy

  • Minimal silicon waste during production

  • Environmentally friendlier manufacturing

Key Disadvantages:

  • Lower efficiency requires more panels for equivalent output

  • Reduced performance in high-temperature environments

  • Larger space requirements for equivalent system size

  • Less aesthetically pleasing to many homeowners

Appearance and Aesthetics

Polycrystalline panels have a distinctive blue, marbled appearance with square edges. Their speckled, non-uniform look results from light reflecting differently off the multiple crystal fragments within each cell. This creates noticeable variation between individual panels, making them more visually prominent on rooftops.

Common aesthetic elements include:

  • Bluish, speckled surface

  • Square cells with straight edges

  • No gaps between cells

  • Typically silver frames and white/silver backsheets

  • Visible crystalline structure

Cost Analysis

Historically, polycrystalline panels have been the budget-friendly option for homeowners entering the solar market. Between 2012-2016, they dominated residential installations due to their significant cost advantage. However, manufacturing improvements have dramatically narrowed the price gap with monocrystalline options.

Current pricing shows polycrystalline panels cost approximately $0.05 per watt less than monocrystalline alternatives – a much smaller differential than in previous years. This diminishing price advantage, combined with their lower efficiency, has shifted many consumers toward monocrystalline options.

Polycrystalline remains ideal for:

  • Budget-conscious installations with ample roof space

  • Projects prioritizing lower upfront costs over maximum efficiency

  • Regions with moderate temperatures and abundant sunlight

  • Installations eligible for certain government subsidies


PERC (Passivated Emitter and Rear Contact) Solar Panels

PERC solar panels represent one of the most significant advancements in photovoltaic technology, enhancing traditional solar cells with innovative design improvements to capture more sunlight.

Overview and Manufacturing

PERC technology adds a specialized reflective layer to the back surface of solar cells, allowing previously unused light a second chance to be converted into electricity. This innovation:

  1. Captures light that passes through the initial silicon layer without being absorbed

  2. Reflects this light back into the silicon for additional absorption

  3. Reduces electron recombination at the rear surface

  4. Creates a more efficient pathway for electron flow

While PERC technology can theoretically be applied to any cell type, manufacturers primarily integrate it with monocrystalline cells, creating "Mono-PERC" panels that combine the best attributes of both technologies. The manufacturing process adds minimal complexity while delivering substantial performance improvements.

Features and Performance

Feature Standard Monocrystalline Mono-PERC Panels
Efficiency 17-22% ~5% higher (22-27%)
Power Output 320-375W Up to 540W
Light Absorption Limited to front surface Front and reflected light
Temperature Performance Good Excellent
Low-Light Performance Good Superior

PERC panels significantly outperform traditional options through:

  • Enhanced sunlight utilization: Capturing previously wasted photons

  • Reduced electron recombination: Improving electrical flow

  • Better temperature coefficient: Maintaining efficiency in hot conditions

  • Improved performance in low-light conditions: Extending productive hours

Advantages and Disadvantages

Advantages:

  • ✅ Highest commercially available efficiency ratings

  • ✅ Maximum power generation in limited space

  • ✅ Superior performance in real-world conditions

  • ✅ Extended energy production hours (morning/evening)

  • ✅ Better performance in partial shading when combined with half-cut cell technology

Disadvantages:

  • ❌ Higher initial investment cost

  • ❌ Some early PERC panels suffered from light-induced degradation (LID)

  • ❌ More complex manufacturing process

  • ❌ Premium pricing may extend ROI timeline for budget-conscious consumers

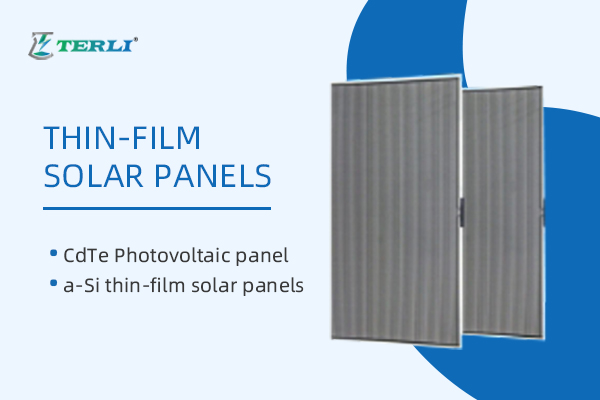

Thin-film Solar Panels

Thin-film solar panels represent a distinct branch of photovoltaic technology, diverging from traditional crystalline silicon panels in both construction and application potential.

Unlike crystalline panels, thin-film technology involves depositing ultrathin layers of photovoltaic materials onto substrates like glass, metal, or plastic. This process creates panels that are often flexible and significantly lighter than their crystalline counterparts.

Three main types of thin-film technologies dominate the market:

  1. Amorphous Silicon (a-Si): Uses non-crystalline silicon in a shapeless arrangement with relatively lower efficiency but good performance in low-light conditions.

  2. Cadmium Telluride (CdTe): Currently the most widely deployed thin-film technology, offering good efficiency with the lowest carbon footprint, though cadmium toxicity raises environmental concerns.

  3. Copper Indium Gallium Selenide (CIGS): Offers the highest efficiency among thin-film technologies due to superior light absorption properties.

The manufacturing process involves:

  • Depositing microscopically thin layers of photovoltaic material onto a substrate

  • Adding transparent conductive layers for electrical collection

  • Encapsulating the structure for environmental protection

  • In some applications, creating flexible panels without rigid glass backing

Features and Performance

Technology Typical Efficiency Advantages Disadvantages
a-Si 6-8% Good in diffuse light Lowest efficiency
CdTe 9-11% Lowest carbon footprint Toxicity concerns
CIGS 13-15% Highest thin-film efficiency Complex manufacturing

Key Advantages:

  • ✅ Lightweight and sometimes flexible

  • ✅ Less sensitive to high temperatures

  • ✅ Better performance in low-light conditions

  • ✅ Lower installation costs due to simpler mounting

  • ✅ Can be integrated into building materials (BIPV)

Key Disadvantages:

  • ❌ Lower efficiency requires larger installation area

  • ❌ Faster degradation rates than crystalline panels

  • ❌ Shorter lifespan (10-20 years vs. 25-40 for crystalline)

  • ❌ Higher long-term replacement costs

Appearance and Aesthetics

Thin-film panels feature a sleek, uniform appearance with minimal visible cell separation. Their all-black or dark blue aesthetic often lies flat against mounting surfaces, creating a seamless, low-profile installation. Without the visible cell structure of crystalline panels, thin-film installations appear more homogeneous and can better blend with architectural elements.

Cost Analysis

Thin-film panels typically offer the lowest upfront cost per panel, making them initially attractive for budget-conscious projects. However, this cost advantage is often offset by several factors:

  • Higher space requirements: Lower efficiency means more panels and mounting hardware

  • Accelerated degradation: Faster performance decline (typically 1-3% annually)

  • Shorter warranty periods: Usually 10-15 years versus 25+ for crystalline panels

  • Earlier replacement cycles: Potentially doubling lifetime system costs

These panels find their best economic value in large-scale commercial or utility installations where space constraints are minimal, or in specialized applications like portable solar chargers and integrated building materials.


Specialized Solar Panel Technologies

Beyond traditional solar panels, several innovative technologies are reshaping how we capture solar energy, each designed for specific applications and aesthetic requirements.

Transparent Solar Panels

Transparent solar technology offers the exciting possibility of turning windows into power generators. Currently, two main varieties exist:

  • Semi-transparent panels: Achieve about 20% efficiency with 40-50% transparency

  • Fully transparent panels: Maintain 100% transparency but offer only ~1% efficiency

Type Efficiency Transparency Suitable Applications
Semi-transparent ~20% 40-50% Office buildings, skylights
Fully transparent ~1% 100% Windows, greenhouse panels

Pioneered by Michigan State University researchers in 2014, transparent luminescent solar concentrators (TLSCs) use specialized materials that absorb invisible wavelengths of light while allowing visible light to pass through. These panels have been installed in several landmark UK buildings, including Gloucestershire County Council Hall and the Barbican Theatre in London.

The technology faces a fundamental challenge: the tradeoff between transparency and energy production. As transparency increases, power generation decreases proportionally.

Solar Tiles

Solar tiles integrate photovoltaic technology directly into roofing materials, creating a seamless aesthetic that appeals to homeowners concerned about traditional panels' appearance.

Key characteristics include:

  • Designed to replace and function as standard roof tiles

  • Typically use monocrystalline or thin-film technology embedded in traditional tile shapes

  • Particularly valuable for historic buildings or conservation areas with strict aesthetic requirements

Despite their visual appeal, solar tiles present several drawbacks:

  1. Approximately 50% more expensive than conventional panels

  2. 20-30% less efficient than standard monocrystalline panels

  3. Installation takes roughly three times longer

The commercial history of solar tiles has been tumultuous. Dow Chemical introduced its solar shingle in 2009 to significant acclaim but discontinued the product in 2016. Tesla's highly publicized Solar Roof, announced in 2016 with a planned UK launch in 2019, remains unavailable in many markets.

Perovskite Solar Panels (Emerging Technology)

Perovskite represents the cutting edge of solar research, using synthetic materials based on the crystal structure of the naturally occurring perovskite mineral discovered in 1839.

These cells typically employ a "tandem" design:

  • Silicon layer absorbs light from the red spectrum

  • Perovskite layer captures energy from the blue spectrum

  • Combined approach significantly increases theoretical efficiency limits

Research progress has been remarkable:

  • First perovskite cell (2009): 3.8% efficiency

  • Current laboratory record (June 2024): 34.6% efficiency

  • Oxford PV's commercial-sized panel: 26.9% efficiency

Though not yet commercially available, perovskite technology promises a significant leap in solar performance once manufacturing challenges are overcome.


Comparison Summary Table

Panel Type Efficiency Lifespan Cost Key Advantage Key Disadvantage
Monocrystalline 17%-22% 30-40 years High Highest efficiency & durability Higher initial cost
Polycrystalline 15%-17% 25-30 years Medium Affordable Lower efficiency, less aesthetic
Mono-PERC Up to 23% 30-40 years Highest Maximum efficiency Most expensive initially
Thin-film 10%-13%, up to 19% 10-20 years Low Low cost, flexible Lowest efficiency, shorter lifespan
Transparent Panels ~1%-20% 25-35 years High (varies) Visual aesthetics Low efficiency
Solar Tiles 10%-20% 25-30 years Very high Blends with roof aesthetics High cost, complex installation
Perovskite Panels 24%-27% (lab) 25-35 years Not available Future highest efficiency Not yet commercially viable


Choosing the Right Solar Panel for Your Home

Selecting the optimal solar panel technology requires balancing several key factors specific to your situation and needs.

Factors to Consider

Before making your decision, evaluate these critical elements:

  • Available space: Limited roof space demands higher efficiency panels

  • Budget constraints: Initial investment vs. long-term savings

  • Energy needs: Your household consumption patterns and requirements

  • Aesthetic priorities: Visual impact on your property's appearance

  • Local conditions: Weather patterns, temperature ranges, and shading issues

  • Regulations: Conservation area restrictions or homeowner association rules

  • Incentives: Government subsidies that may favor specific technologies

Recommendations

Your Situation Recommended Panel Type Key Benefit
Limited roof space Monocrystalline or Mono-PERC Maximum power in minimal space
Budget priority Polycrystalline Lower initial investment
Historic property Solar tiles Aesthetic integration
Mobile home/RV Thin-film Flexibility and lightweight
Maximum performance Mono-PERC Highest efficiency commercially available

Best choices for most homeowners:

  1. Monocrystalline panels offer the best balance of efficiency, lifespan, and aesthetics for typical residential installations.

  2. Mono-PERC technology provides superior performance for homes with limited installation space or high energy requirements.

  3. Polycrystalline panels remain viable for budget-conscious homeowners with adequate roof space, especially in regions offering subsidies for domestically manufactured panels.

The solar market continues evolving rapidly, with emerging technologies like perovskite panels promising even higher efficiencies in the future.


Summary up

Solar panels come in several varieties, each with unique strengths. Monocrystalline offers premium efficiency with sleek black appearance. Polycrystalline provides budget-friendly options with distinctive blue coloring. PERC technology enhances performance with additional reflective layers.

Your ideal solar panel depends on specific circumstances. Consider your roof space, budget constraints, energy needs, and aesthetic preferences.

The solar industry continues to evolve rapidly. Emerging technologies like perovskite panels promise even greater efficiency. These innovations will make solar energy more accessible and effective for everyone.

Table of contents
Inquiry

QUICK LINKS

Privacy Policy

ABOUT

PRODUCTS

+86-020-39201118

 +86 17727759177
  inbox@terli.cn
 Whatsapp: +86 18666271339
 Facebook:Terli Solution / Terli Battery
LinkedIn:  Terli Battery
 No. 52, Dangang West Street, Shiqi Village,Panyu, Guangzhou, China.
213 Shinan Road, Nansha District, Guangzhou, China.
© 2025 All right reserved Guangzhou TERLI New Energy Technology Co., Ltd.  Sitemap / Powered by leadong
