Are your solar panels wired the right way? The setup can change everything—from power output to cost.
Solar panels convert sunlight into electricity, powering homes, RVs, and off-grid systems. But wiring matters.
Connecting panels in series or parallel affects voltage, current, and how your system handles shade.
In this post, you'll learn the difference between series and parallel wiring.
We'll explore pros, cons, safety, cost, and how to choose the best for your needs.
Before diving into series and parallel connections, it's important to understand how solar panels work and what key terms mean. These basics will help you make sense of how different wiring setups affect your system's performance.
Understanding these fundamental electrical concepts is crucial when planning your solar setup:
| Term | Definition |
|---|---|
| Voltage | The electrical potential difference (pressure) between two points in a circuit, measured in volts (V) |
| Current | The flow rate of electrical charge through a circuit, measured in amperes (A) |
| Amperage | Another term for current, representing the quantity of electrons flowing through a circuit |
| Output Voltage | The voltage produced by a solar panel or array under specific conditions |
| Output Current | The maximum current a solar panel can supply to a connected device or system |
Think of electricity like water flowing through pipes: voltage is the water pressure, while current (amperage) is the water flow rate. Both are essential for delivering power to your home or devices.
Solar panels convert sunlight into electricity through the photovoltaic effect:
Light Absorption: Photons from sunlight strike the silicon cells in solar panels
Electron Activation: The photons energize electrons in the silicon, causing them to break free
Electric Field: The panel's design creates an electric field that forces the free electrons to flow in one direction
DC Generation: This flow of electrons creates direct current (DC) electricity
Inversion: An inverter converts the DC electricity to alternating current (AC) for home use
Each solar panel has two terminals: a positive (+) and a negative (–). The way these terminals are connected (series vs. parallel) changes the system's voltage and current.

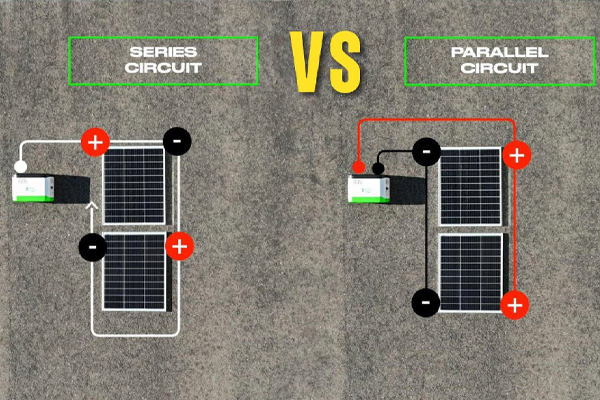

A series connection links solar panels in a chain, much like connecting batteries end to end. In this configuration, the positive terminal of one panel connects to the negative terminal of the next. This setup increases the overall voltage of the system while the current stays the same.
In a series connection, solar panels are linked in a chain-like arrangement where the positive terminal of one panel connects to the negative terminal of the next panel. This creates a single path for electricity to flow through all panels sequentially.
Think of series-connected panels like batteries in a flashlight – they're stacked end-to-end to increase the voltage while the current remains constant.
Connecting solar panels in series is relatively straightforward:
Identify the positive and negative terminals on each panel
Connect the positive terminal of the first panel to the negative terminal of the second panel
Continue this pattern for all remaining panels in the array
Connect the remaining free positive and negative terminals to your charge controller or inverter
When solar panels are wired in series, their electrical properties combine in a specific way:
Voltage adds up: The total voltage equals the sum of each panel's voltage
Current remains constant: The current stays the same as a single panel
Example: If you connect three 18-volt, 6-amp panels in series:
Total Voltage: 18V + 18V + 18V = 54V
Total Current: Remains at 6 amps
Total Power: 54V × 6A = 324 watts
Series configurations excel in specific scenarios:
Higher voltage requirements: Ideal for grid-tied systems requiring higher voltages
Long-distance power transmission: Higher voltage means less power loss over distance
Low-light performance: Works better in early morning, evening, and cloudy conditions
MPPT charge controller compatibility: Maximizes efficiency with voltage regulation
| Advantages | Disadvantages |
|---|---|
| Higher voltage output | Entire string affected by shading on one panel |
| Smaller, less expensive wiring | One panel failure can disable entire string |
| Better performance in low light | Requires MPPT charge controllers |
| More efficient for long distances | Higher voltage requires additional safety measures |
| Simpler installation with fewer components | Less flexibility for expansion |
Parallel connection represents the second fundamental method for combining multiple solar panels in a system. This configuration offers distinct electrical characteristics that can be advantageous in specific scenarios.
In a parallel connection, all the positive terminals of the solar panels are connected together, and similarly, all the negative terminals are joined together. This creates multiple paths for electricity to flow, allowing each panel to operate independently.
Imagine parallel panels like multiple lanes on a highway - more lanes allow more traffic (current) to flow while maintaining the same speed limit (voltage).
Setting up a parallel configuration involves these steps:
Identify the positive and negative terminals on each panel
Connect all positive terminals together using branch connectors or a combiner box
Connect all negative terminals together in the same manner
Connect the combined positive and negative leads to your charge controller or inverter
When solar panels are connected in parallel, their electrical properties combine as follows:
Current adds up: The total current equals the sum of each panel's current
Voltage remains constant: The voltage stays the same as a single panel
Example: If you connect three 18-volt, 6-amp panels in parallel:
Total Voltage: Remains at 18V
Total Current: 6A + 6A + 6A = 18A
Total Power: 18V × 18A = 324 watts
Parallel configurations excel in these scenarios:
Variable light conditions: Each panel operates independently, so shading on one panel doesn't affect others
Battery charging systems: Higher current delivers faster charging at consistent voltage
System expandability: Easy to add more panels without exceeding voltage limits
PWM charge controller compatibility: Works well with simpler, less expensive controllers
Low-voltage systems: Ideal for 12V or 24V battery systems in RVs, boats, or small off-grid setups
| Advantages | Disadvantages |
|---|---|
| Resilient to partial shading | Requires thicker, more expensive wiring |
| One panel failure doesn't affect others | Higher current increases transmission losses |
| Consistent voltage output | More complex installation with additional components |
| Easier system expansion | Limited by maximum controller current |
| Works with less expensive PWM controllers | Not ideal for beginning/end of day performance |
Parallel connections help you build resilient, expandable, and shade-tolerant solar systems—perfect for RVs, boats, or off-grid homes. Just make sure your wiring and controller can handle the higher current.
Understanding the key differences between series and parallel connections is essential for designing an efficient solar power system. Each configuration offers distinct advantages depending on your specific needs and environmental conditions.
The following table highlights the critical differences between series and parallel solar panel connections:
| Characteristic | Series Connection | Parallel Connection |
|---|---|---|
| Voltage | Adds up (V₁ + V₂ + V₃...) | Remains constant (equals one panel) |
| Current | Remains constant (equals one panel) | Adds up (I₁ + I₂ + I₃...) |
| Power Output | Voltage increases × constant current | Constant voltage × current increases |
| Shade Tolerance | Poor (one shaded panel affects all) | Good (only the shaded panel's output reduced) |
| Wire Requirements | Thinner wires (lower current) | Thicker wires (higher current) |
| Distance Efficiency | Better for long distances | Better for short distances |
The fundamental electrical behaviors determine system performance:
Series Voltage Behavior: With three 18V panels in series, you get 54V total output while maintaining the original amperage
Parallel Current Behavior: The same three panels in parallel maintain 18V but produce triple the amperage (e.g., 18A from three 6A panels)
Power Output: Both configurations can produce the same theoretical power (Voltage × Current), but real-world efficiency varies based on conditions
How each configuration performs depends largely on environmental factors:
Shade Tolerance:
Series: Like Christmas lights – one panel failure affects the entire string
Parallel: Independent operation – shaded panels don't impact others
Low Light Performance:
Series: Better performance in early morning/late afternoon and cloudy conditions
Parallel: Requires higher light levels to reach minimum voltage thresholds
Each configuration demands specific equipment considerations:
Charge Controllers:
Series: Requires MPPT controllers to handle higher voltage
Parallel: Works with less expensive PWM controllers for smaller systems
Wiring & Components:
Series: Smaller gauge wires (less expensive)
Parallel: Requires thicker wires, branch connectors or combiner boxes
Protection Devices:
Series: Needs voltage protection
Parallel: Requires current protection (fuses for each string)
Series Connections: Perfect for consistent sunlight, grid-tied systems, long cable runs, and when using MPPT controllers
Parallel Connections: Ideal for areas with partial shading, smaller off-grid systems, RVs, boats, and when simple expansion is needed
Before wiring your solar panels, it’s important to evaluate your system’s needs. The right configuration depends on several key factors:
Consider these key factors when planning your solar array:
Location conditions: Assess sunlight consistency and potential shading
Power needs: Determine your required voltage and current levels
Physical space: Consider panel arrangement limitations
Future expansion: Plan for potential system growth
Your existing or planned equipment significantly influences your wiring choice:
| Equipment | Series Preference | Parallel Preference |
|---|---|---|
| MPPT Charge Controller | ✓ (handles higher voltage) | - |
| PWM Charge Controller | - | ✓ (matches battery voltage) |
| Grid-Tied Inverter | ✓ (needs higher voltage) | - |
| 12V/24V Battery System | - | ✓ (consistent charging voltage) |
The practical aspects of installation also matter:
Series advantages:
Requires less expensive, thinner gauge wiring
Simpler connections with fewer components
Lower transmission losses over distance
Parallel considerations:
Needs thicker, more expensive wiring
Requires additional components (combiners, branch connectors)
May need additional fusing for each string
The optimal configuration often balances your specific environmental conditions, equipment compatibility, budget constraints, and performance requirements.
Yes! Series-parallel configurations offer the best of both worlds, combining the advantages of both wiring methods for optimal system performance.
A series-parallel configuration involves:
Creating multiple strings of panels connected in series
Then connecting these strings in parallel
This hybrid approach allows you to increase both voltage and current in a controlled manner.
Consider a series-parallel configuration in these scenarios:
| Scenario | Benefits |
|---|---|
| Larger systems | Stays within charge controller voltage/current limits |
| Mixed sunlight conditions | Balances shade tolerance with efficiency |
| Higher power requirements | Achieves optimal voltage and current levels |
| Complex installation sites | Accommodates varied panel orientations |
This approach is particularly valuable when your system size would otherwise exceed either the voltage or current limitations of your equipment.
Follow these steps to create a series-parallel configuration:
Create series strings: Connect 2-4 panels in series to form multiple identical strings
Connect string endpoints: Join the positive terminals of all strings together
Connect negative terminals: Join the negative terminals of all strings together
Add protection: Install appropriate fusing for each string
Connect to equipment: Route combined positive and negative leads to your controller
This configuration gives you flexibility when designing larger systems while maintaining reasonable voltage and current levels for your equipment.
The ideal solar panel wiring configuration isn't a matter of which is universally "better" - it's about which is better for your specific situation. Each approach offers distinct advantages that make it suitable for different applications.
| Series Benefits | Parallel Benefits |
|---|---|
| Higher voltage for grid-tied systems | Higher current for battery charging |
| Better performance in low light | Independent panel operation |
| Less expensive wiring | Better shade tolerance |
| Efficient for long distances | Easier system expansion |
| Works with MPPT controllers | Compatible with PWM controllers |
Choose the configuration that aligns with your specific circumstances:
Choose series when:
You have consistent, unshaded sunlight
You need higher voltage for grid connection
Your panels are far from the controller/inverter
Choose parallel when:
Your location experiences partial shading
You're building a small off-grid system
You anticipate adding more panels later
While these guidelines help clarify the differences, your specific situation may benefit from expert analysis. A professional solar installer can:
Evaluate your energy needs and location
Recommend optimal equipment configurations
Design a system that maximizes efficiency and performance
Ensure code compliance and safety standards are met
The best configuration ultimately depends on balancing your energy goals, budget, and installation environment.
Series increases voltage. Parallel increases current. Both deliver power, but behave differently under shade or load.
Your system’s needs—voltage, current, shading—should guide your wiring choice.
Think about your setup and goals. Then, match the configuration accordingly.
Contact TERLI New Energy to learn how series or parallel solar panel setups can fit your needs. Get clear answers fast.
