Solar energy is rapidly transforming how we power our buildings and communities. It's renewable, increasingly affordable, and environmentally friendly.

Two key technologies dominate the solar landscape: traditional Photovoltaic (PV) modules and Building-Integrated Photovoltaics (BIPV).

While both harness the sun's energy, they differ significantly in fundamental ways.

PV modules are added to existing structures. BIPV systems become part of the building itself.

In this article, we'll explore their distinct differences in design, installation, functionality, and aesthetics.

You'll discover which solar solution might best suit your specific needs and priorities.


What are PV Modules?

Photovoltaic (PV) modules, commonly known as solar panels, are specialized devices designed to convert sunlight directly into electricity. These systems utilize semiconductor materials, primarily silicon, that generate an electric current when exposed to photons from sunlight.

The conversion process occurs when sunlight strikes the photovoltaic cells within the panels, creating a flow of electrons that can be captured as usable electrical power. This direct current (DC) is then converted to alternating current (AC) through inverters for residential or commercial use.


solar panel

Common Applications of PV Modules

PV modules have become increasingly versatile, finding applications across various settings:

Application Type Examples Key Characteristics
Residential Rooftop installations Typically 3-10kW systems
Commercial Business rooftops, carports Larger scale, 10-500kW
Utility-Scale Solar farms, ground arrays Massive installations, multiple MW
Portable Backpacks, chargers, remote equipment Small-scale, mobile solutions

Advantages of PV Modules

  • Cost-Effectiveness: Traditional PV systems offer relatively low installation and maintenance costs compared to other renewable energy solutions.

  • Proven Technology: With decades of development, PV modules represent mature, reliable technology with predictable performance.

  • Installation Flexibility: Can be deployed in various locations including rooftops, open ground areas, and even portable structures.

  • Energy Independence: Allow users to generate their own electricity, reducing dependence on utility grids and providing resilience during outages.

  • Scalability: Systems can be easily expanded by adding more panels as energy needs grow.

Disadvantages of PV Modules

  • Aesthetic Limitations: Often considered visually intrusive, especially when retrofitted onto existing buildings.

  • Space Requirements: Require significant dedicated surface area for installation, which can be challenging in densely populated urban environments.

  • Single-Function Design: Unlike integrated solutions, traditional PV only serves one purpose—electricity generation—without contributing to building functionality.

  • Mounting Considerations: May require structural modifications or reinforcement of existing buildings to support the additional weight.

  • Limited Design Flexibility: Typically available in standard shapes and sizes with minimal customization options.

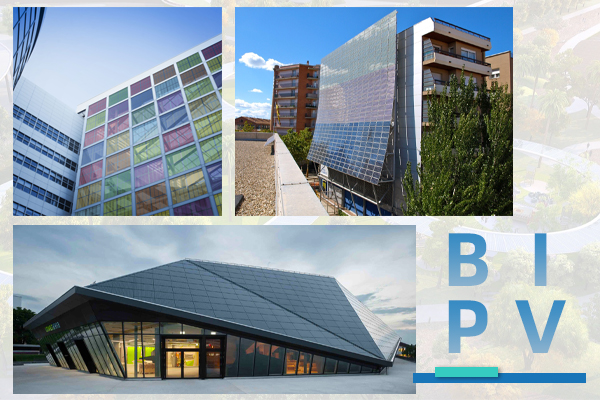

What is BIPV?

Building-Integrated Photovoltaics (BIPV) represents an innovative approach to solar energy implementation where photovoltaic elements are seamlessly incorporated as integral building materials rather than added as separate components. Unlike conventional solar panels, BIPV systems replace traditional construction materials while simultaneously generating electricity.

This technology is typically incorporated during the architectural design phase and implemented during initial construction or major renovations. BIPV elements become part of the building's structural identity, creating a harmonious blend of functionality and energy production.


6 - For these BIPV projects with strict requirements on light reflection, the surface of the power generation glass can be frosted to achieve a lower light reflection effect

Common BIPV Applications

BIPV technology can be implemented in numerous building components:

  • Solar Roof Tiles/Shingles: Replace conventional roofing materials

  • Solar Façades/Curtain Walls: Integrate into building exteriors

  • Photovoltaic Skylights: Provide natural lighting while generating power

  • Solar Awnings/Canopies: Create shaded areas with power generation

  • Semitransparent Solar Windows: Allow light transmission while capturing energy

Advantages of BIPV

BIPV systems offer multiple benefits beyond standard solar panels:

Advantage Description
Aesthetic Integration Blends seamlessly with building design in various shapes, sizes, and colors
Multifunctionality Provides weather protection, thermal insulation, sound dampening, and sun protection
Space Optimization Utilizes existing building surfaces without requiring additional dedicated space
Design Flexibility Offers architects creative freedom to incorporate renewable energy unobtrusively
Enhanced Building Value Contributes to sustainability certifications and improved property marketability

Disadvantages of BIPV

Despite its benefits, BIPV presents several challenges:

  1. Higher Initial Costs: BIPV systems typically cost 2.5-3 times more than conventional solar panels due to specialized materials and integration requirements.

  2. Installation Complexity: Requires specialized skills and techniques, particularly when incorporated during construction phases.

  3. Maintenance Challenges: Repairs may involve building structural elements, increasing complexity and potential costs.

  4. Lower Efficiency: Generally produces less energy per square meter than optimally-positioned conventional PV systems.

  5. Design Constraints: May require compromises between aesthetic considerations and maximum energy production.


Key Differences Between PV Modules and BIPV

While both PV modules and Building-Integrated Photovoltaics (BIPV) convert sunlight into usable electricity, they differ significantly in how they function, look, and fit into a building's lifecycle.

Functional Positioning

The core distinction between these technologies lies in their fundamental purpose:

  • PV Modules: Function primarily as "retrofit" energy systems added to existing structures with the singular goal of electricity generation.

  • BIPV Systems: Serve dual purposes as both building materials and power generators, replacing conventional construction elements while producing electricity.

Design Philosophy and Aesthetics

Aspect PV Modules BIPV Systems
Visual Impact Often visually prominent Seamlessly integrated
Design Priority Function over form Balance of aesthetics and function
Customization Limited options Various shapes, colors, and textures
Architectural Integration Minimal consideration Central design element

Installation Methodology

The implementation approach differs significantly between these technologies:

  1. PV Module Installation:

    • Mounted on existing buildings or ground-based structures

    • Requires mounting hardware and supporting frameworks

    • Can be implemented at any stage of a building's lifecycle

    • Generally follows standardized installation procedures

  2. BIPV Implementation:

    • Integrated during architectural design and construction phases

    • Replaces conventional building materials (roofing, façades, windows)

    • Requires coordination between solar experts and construction teams

    • Demands specialized installation techniques and considerations

Efficiency and Performance

While both technologies generate clean electricity, their performance characteristics vary:

  • Energy Generation:

    • PV modules typically offer higher efficiency rates as they can be positioned optimally

    • BIPV systems may produce 5-10% less energy due to design constraints and integration requirements

  • Lifespan Considerations:

    • PV modules generally have 25-30 year warranties

    • BIPV systems must match building component lifespans while maintaining power generation capability

Cost Implications

The financial aspects represent a critical decision factor:

  • Initial Investment:

    • PV systems offer lower upfront costs focused solely on energy production

    • BIPV systems cost approximately 2.5-3 times more than conventional PV, but offset some building material expenses

  • Return on Investment:

    • PV systems typically provide faster direct financial returns

    • BIPV returns include energy savings plus added building value through enhanced aesthetics and sustainability credentials

  • Maintenance Economics:

    • PV systems involve straightforward panel maintenance

    • BIPV maintenance may involve more complex building integration considerations

The choice between these technologies ultimately depends on project goals, budget constraints, architectural requirements, and long-term sustainability objectives.


Market Analysis and Growth Trends

The global solar energy market is expanding rapidly, driven by clean energy policies, technological innovation, and growing electricity demand.
Both traditional PV modules and Building-Integrated Photovoltaics (BIPV) are contributing to this growth—but in different ways.

Current Market Status

The global photovoltaic sector demonstrates robust growth across both traditional and integrated solutions:

Traditional PV Market:

  • The global PV module market reached an estimated CNY 580.3 billion in 2024

  • Steady growth trajectory with 8.19% CAGR over five years

  • Established technology with widespread adoption across residential, commercial, and utility sectors

BIPV Market Development:

  • Global BIPV market valued at approximately $6.31 billion in 2024

  • Accelerated growth rate of 14.79% CAGR, nearly double that of conventional PV

  • Emerging technology gaining traction primarily in new construction and high-value renovation projects

Growth Projections

The future outlook reveals diverging growth paths:

Timeline Traditional PV BIPV
Short-term (2025) Continued steady expansion 23.66 GW global installed capacity
Medium-term (2030) Market maturation expected China's market alone reaching CNY 400 billion
Long-term (2036) Gradual growth with price stabilization Global market exceeding $247.9 billion (19.7% CAGR)

Regional Market Variations

Solar technology adoption shows significant geographic differences:

  1. China's Market Leadership

    • Largest PV market globally with 723.61 GW installed capacity by 2024

    • BIPV market estimated at CNY 500 billion (2024)

    • 58% CAGR for BIPV from 2020, indicating explosive growth

    • Projected 20% BIPV penetration in solar building market by 2025

  2. Other Regional Trends

    • European markets driving BIPV adoption through stringent building energy codes

    • North American growth concentrated in premium construction segments

    • Developing markets focusing primarily on traditional PV deployment

The distinctive growth patterns between conventional PV and BIPV reflect their different value propositions - with traditional PV expanding through cost optimization and BIPV growing through architectural integration and building regulations.


Conclusion

PV modules and BIPV systems represent two distinct approaches to solar energy adoption.

Traditional PV offers cost-effective energy generation with proven technology. BIPV seamlessly integrates with buildings while serving dual purposes.

Your choice depends on several factors. Consider your budget constraints. Think about your energy production goals. Don't forget aesthetic preferences and sustainability targets.

Both technologies play vital roles in our renewable energy future. They offer different advantages for different situations.
