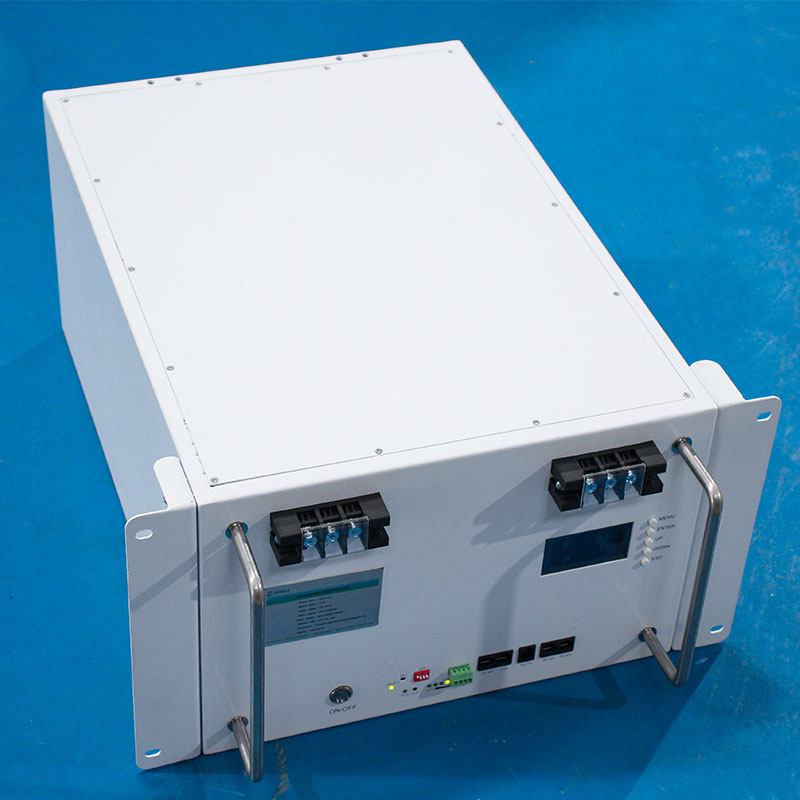

Technology Solar Battery 48v 200ah Lithium Ion Battery Pack

1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.

Availability:

Quantity:



Inquire

Product Description

Main Features:

1. Light weight: about 40%~50% of the weight of lead-acid batteries.
2. Can be charged using most standard lead acid charge (set).
3. Wide temperature range: -20 ° C ~ 60 ° C.
4. Support for series application extensions (up to 512V)

Model	Power Pack
Battery Type	LiFe PO4
Battery Module	3kWh	5kWh	7kWh	10kWh
Battery Capacity (Ah)	60	100	150	202
Nominal Battery Energy (kWh)	3	5.1	7.6	9.6
Max Output Power（kW）	2.4	4.8	7.2	10.3
Net Weight（Kg）	40	53	70	83
Dimension (LWH mm )	19inch 4U	19inch 5U	19inch 5U	19inch 5U
Working Voltage (V)	43.2~58.4
Operating Temp.Range (°C)	-20~50
Calendar Life (Cycles)	6000@25°C,80%DOD
Nominal Voltage(V)	51.2
Protection Level	IP54
Communication	CAN/RS485
Certification & Safety Standard	TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited
Monitoring & Protection	BMS
HMI	LCD
