1：Modular design lithium battery LIFePO4 battery,Safe, Longer lIfe span. Modular design,
2：Easy to stack. Larger energy capacity.
3：Weld temperature range of -20-25°C.
| Quantity: | |
|---|---|
200ah
Terli

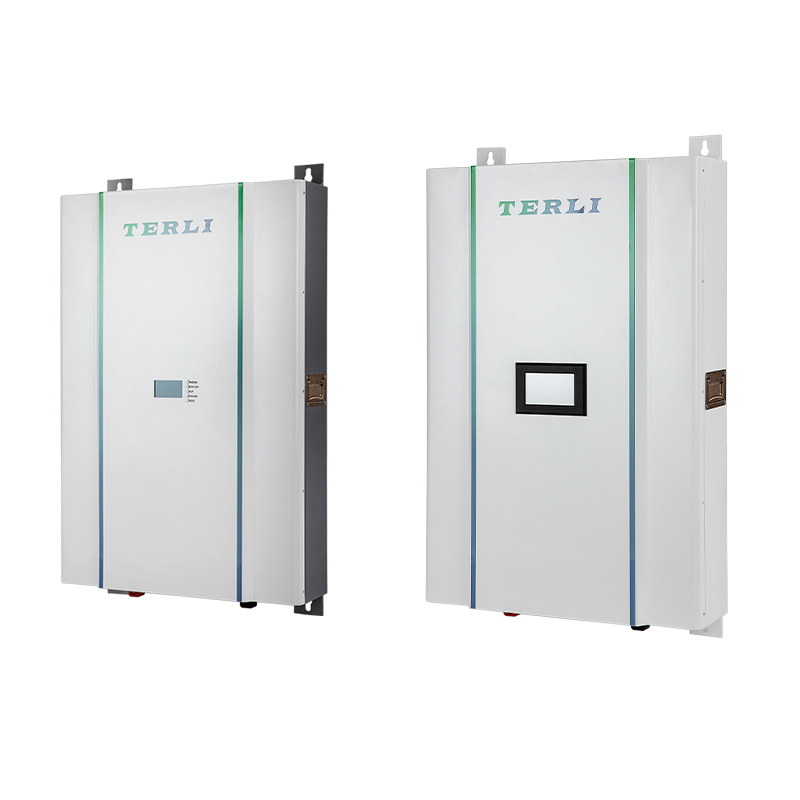

1. Iron Phosphate-lithium power battery
2. Long warranty period:3~10years
3. Higher energy density,smaller volumn for household.
4. Support Connected in parallel mode for expansion.
5. Photovoltaic system:this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS):the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
7. Expandability: this battery pack can be easily expanded by adding expansion battery packs in parallel connection
Model | Helios | |||
Battery Type | LiFe PO4 | |||
Battery Module | Helios 3 | Helios 5 | Helios 7 | Helios 10 |
Battery Capacity (Ah) | 60 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power（kW） | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight（Kg） | 41 | 56 | 81 | 98 |
Dimension (L*W*H mm) | 350*300*180 | 700*580*210 | ||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp.Range (°C) | -20~50 | |||
Calendar Life (Cycles) | 6000@25°C,80%DOD | |||
Nominal Voltage(V) | 51.2 | |||
Protection Level | IP54 | |||
| Communication | CAN/RS485 | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |||
Monitoring & Protection | BMS | |||
| HMI | LCD | |||
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
Q5. What are the advantages that distinguish from others?
1. Official cooperative supplier of China State Grid Official
2. With professional product development team
3. Rich experience in wireless computer room
4. With superior energy storage solution
Q6: How to make order?
Send us your purchase order by email , or ask us to send you a proforma invoice for your order, or start an order on Alibaba Trade Assurance
