1：Overcharge detection function
2：Over discharge detection function
3：Over current detection function
| Quantity: | |
|---|---|
200ah
Terli
Terli offer a full power solution of LiFePO4 battery pack + charger + BMS.
Our range covers from 12V / 24V / 48V / 72V / 96V to 388V.
With a capacity of 50Ah / 100Ah / 150Ah/200Ah / 600Ah.
If the standard batteries don’t fit for your application, then we can assembly a custom made Lithium battery based on your specifications .
Please send us your parameters as dimensions, voltage, capacity and required current and we will search together with you for a solution.

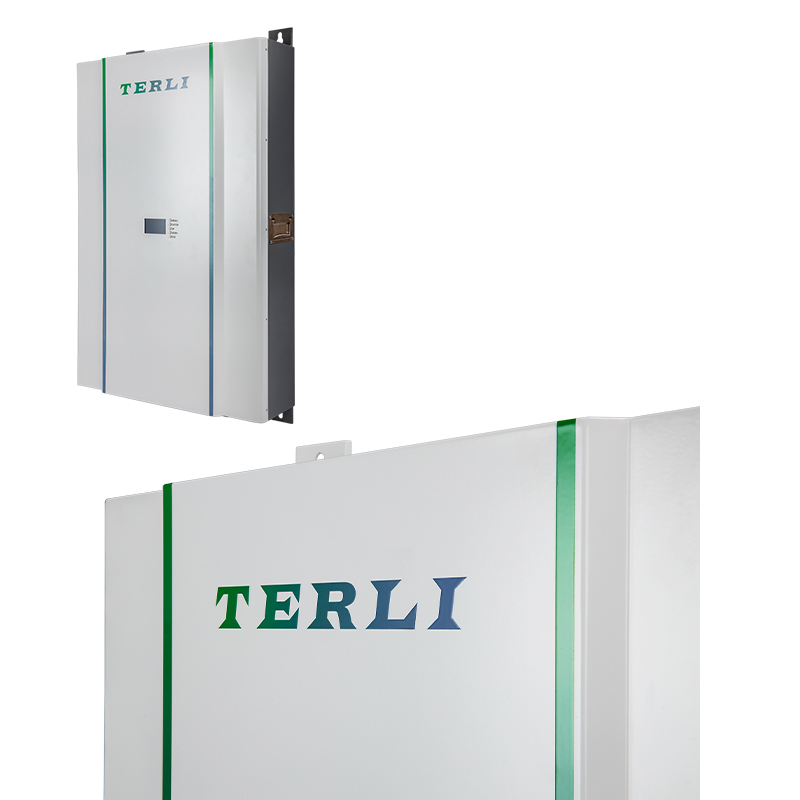

Model | Helios | |||
Battery Type | LiFe PO4 | |||
Battery Module | Helios 3 | Helios 5 | Helios 7 | Helios 10 |
Battery Capacity (Ah) | 60 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power（kW） | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight（Kg） | 41 | 56 | 81 | 98 |
Dimension (L*W*H mm) | 350*300*180 | 700*580*210 | ||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp.Range (°C) | -20~50 | |||
Calendar Life (Cycles) | 6000@25°C,80%DOD | |||
Nominal Voltage(V) | 51.2 | |||
Protection Level | IP54 | |||
| Communication | CAN/RS485 | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |||
Monitoring & Protection | BMS | |||
| HMI | LCD | |||
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
Q5. What are the advantages that distinguish from others?
1. Official cooperative supplier of China State Grid Official
2. With professional product development team
3. Rich experience in wireless computer room
4. With superior energy storage solution
Q6: How to make order?
Send us your purchase order by email , or ask us to send you a proforma invoice for your order, or start an order on Alibaba Trade Assurance
