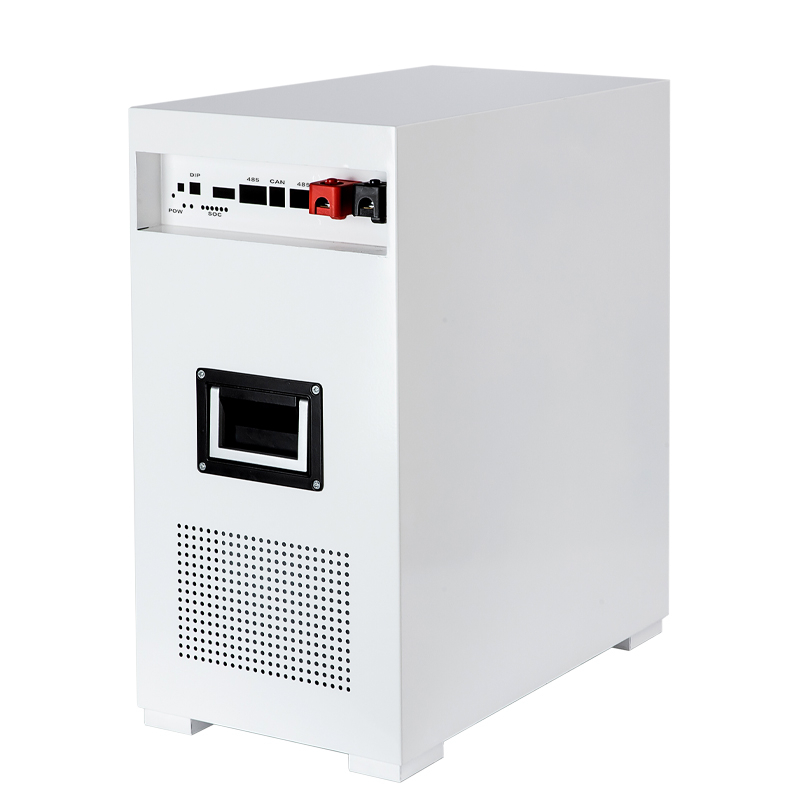

Backup Emergency power system

1.Easy installation,  cabinet / Wall mounted
2.Built-in automatic protection for over-charge, over-discharge & over-temperature conditions
3.Multiple parallel lines can be used to increase the total capacity . (up to 16 sets)
Availability:
Quantity:


Model

Power Pack

Battery Type

LiFe PO4

Battery Module

3kWh

5kWh

7kWh 10kWh

Battery Capacity (Ah)

60

100

150 202

Nominal Battery Energy (kWh)

3

5.1

7.6 9.6

Max Output Power(kW)

2.4

4.8 7.2 10.3

Net Weight(Kg)

40

53

70 83

Dimension (L*W*H mm)

500*530*240

Working Voltage (V)

43.2~58.4

Operating Temp.Range (°C)

-20~50

Calendar Life (Cycles)

6000@25°C,80%DOD

Nominal Voltage(V)

51.2

Protection Level

IP54

Communication CAN/RS485
 Performance Warranty 10 Years

Certification & Safety Standard

TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited

Monitoring & Protection

BMS
