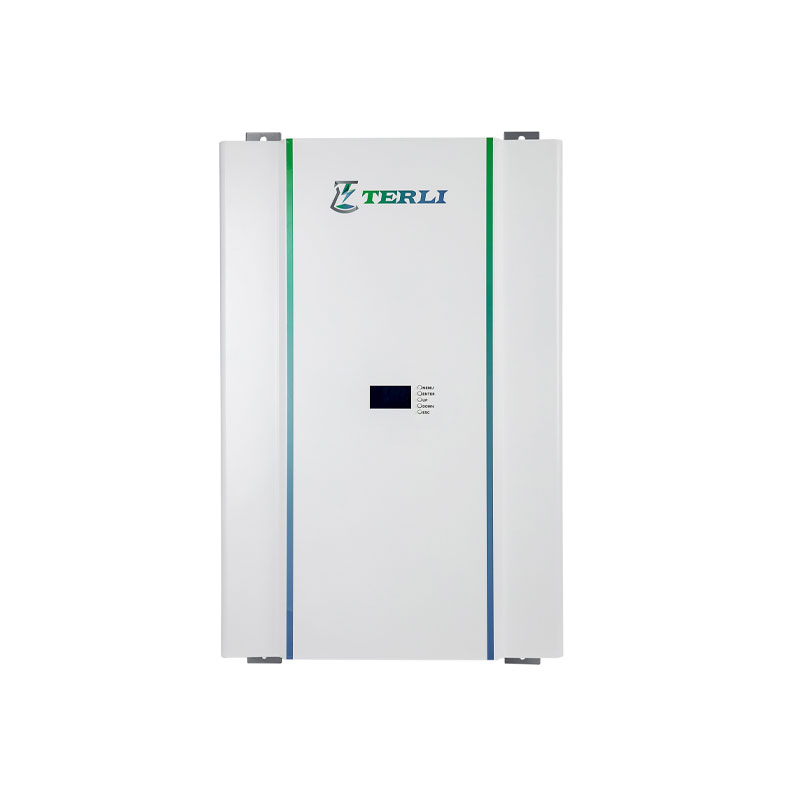

48v 5kw Lithium Ion Battery

1. Iron Phosphate-lithium Battery Powerwall : More than 6000 cycle times
2. Higher energy density,smaller volume for household.Long
3. warranty period:3 years~10years
4. Support Connected in parallel mode for expansion
5. Photovoltaic system:this battery pack is designed for household photovoltaic systems.
6. Expand ability: this battery pack can be easily expanded by adding expansion battery packs in parallel conne
7. Battery management system(BMS):the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
Availability:
Quantity:
  • 100ah

  • Terli

Features:

1.48V/100AH/150AH/200AH

2. Wall-mounted Design, easy installation

3. Super Graphene LifePo4 lithium cell

4. Smart Elite BMS ensures safe and stable

5. Longer cycle life > 6000cycles.

6. LED Intelligent Monitoring


Model

Helios

Battery Type

LiFe PO4

Battery Module

Helios 3

Helios 5

Helios 7 Helios 10

Battery Capacity (Ah)

60

100

150 202

Nominal Battery Energy (kWh)

3

5.1

7.6 9.6

Max Output Power(kW)

2.4

4.8 7.2 10.3

Net Weight(Kg)

41

56

81 98

Dimension (L*W*H mm)

350*300*180

700*580*210

Working Voltage (V)

43.2~58.4

Operating Temp.Range (°C)

-20~50

Calendar Life (Cycles)

6000@25°C,80%DOD

Nominal Voltage(V)

51.2

Protection Level

IP54

Communication CAN/RS485

Certification & Safety Standard

TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited

Monitoring & Protection

BMS

HMI LCD
