Terli power focus on developing and producing Li-ion battery and battery system integration ,through many years development and research.we have formed a complete industry chain from research, production to sales.
Terli battery has the characteristics of longer recycle life,more higher security and more reliability, higher energy density
| Quantity: | |
|---|---|

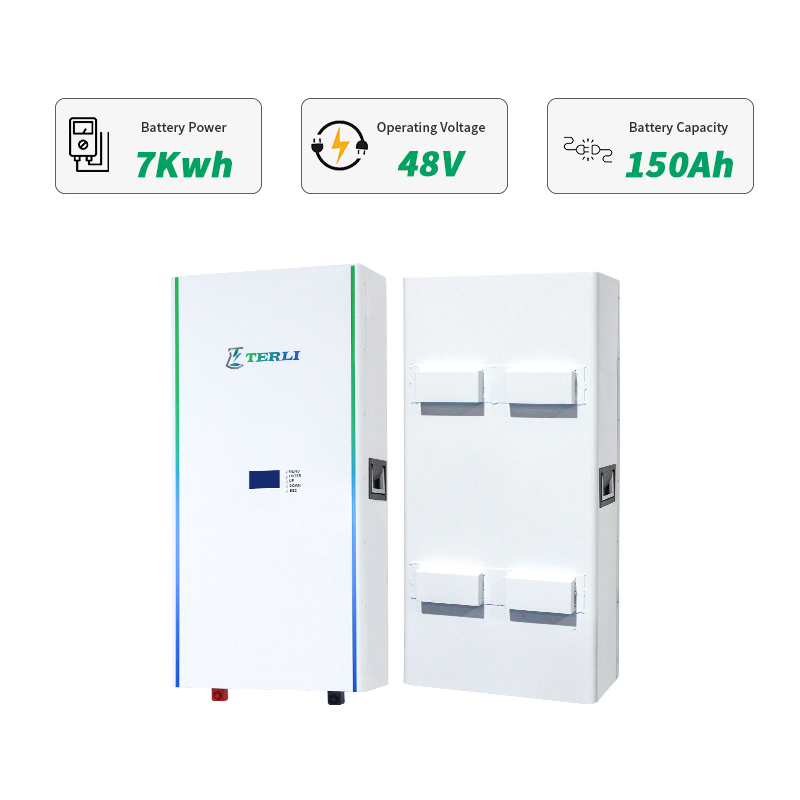

7KW
Terli
Product Description
· About 10 times longer life cycle than lead-acid battery.
· High energy density, about 2 times more capacity with the same size
· Fast charging and large current discharging without damaging the battery.
· Smart battery with charging, discharging, short circuit and temperature rising control by BMS.
· Hazardous free and environment friendly products
· Wall mounted and easy for installation.
Model | Helios | |||
Battery Type | LiFe PO4 | |||
Battery Module | Helios 3 | Helios 5 | Helios 7 | Helios 10 |
Battery Capacity (Ah) | 65 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power（kW） | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight（Kg） | 41 | 56 | 81 | 98 |
Dimension (L*W*H mm) | 450*400*220 | 700*580*210 | ||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp.Range (°C) | -20~50 | |||
Calendar Life (Cycles) | 6000@25°C,80%DOD | |||
Nominal Voltage(V) | 51.2 | |||
Protection Level | IP54 | |||
| Communication | CAN/RS485 | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |||
Monitoring & Protection | BMS | |||
| HMI | LCD | |||
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
Q5:Can you give me a discount?
Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.
Q6. What are the advantages that distinguish from others?
1. Official cooperative supplier of China State Grid Official
2. With professional product development team
3. Rich experience in wireless computer room
4. With superior energy storage solution
