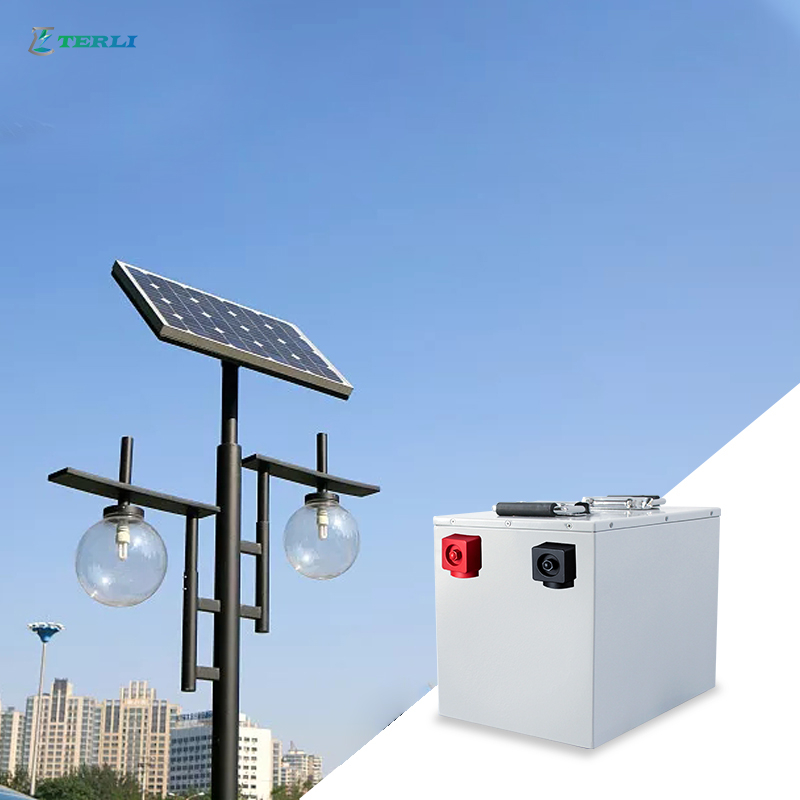

12V 200AH lifepo4 solar battery lithium battery for RV

Application Area:
Solar energy, wind power station;
Solar, wind energy unattended base station;
Solar, wind energy household power supply system;
Solar energy signal lamp,street lamp, lawn lamp, traffic signal lamp, warning light;
Photovoltaic water pumping system;
The border post Island garrison power supply system;
Remote automation control power supply;
Automatic measuring and reporting power for warm water;
Roof photovoltaic power supply;
Surveying base station.

Availability:

Quantity:



Inquire

Model:
200ah
Brand:
Terli

Product Description

Product Technical Characteristics:

Green environmental protection;

Safe and reliable of Sealing technology;

Cycle durability and long life;

Low self discharge rate;

Highly charging efficiency;

Good uniformity of performance;

High altitude and temperature;

Excellent capacity recovery performance;

Design life 8-10 years

Model	12V
Battery Type	LiFe PO4
Battery Module	TY-12-100	TY-12-150	TY-12-200
Battery Capacity (Ah)	100 AH	150AH	200AH
Nominal Battery Energy (kWh)	1.2	1.8	2.4
Nominal Voltage (V)		12.8V
Nominal Output Current (A)	50	75	100
Weight (Kg)	12.16	15.5	18.9
Dimension (LWH mm)	270170230	240205190	270180230
Package Dimension (LWH mm)	310210270	280245230	310220280
Working Voltage (V)	11.2-14.6
Operating Temp.Range (°C)	-20~50
Calendar Life (Cycles)	6000@25°C,80%DOD
Protection Level	IP54
Terminal	Anderson Or Other
Certification & Safety Standard	TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited
Monitoring & Protection	BMS
