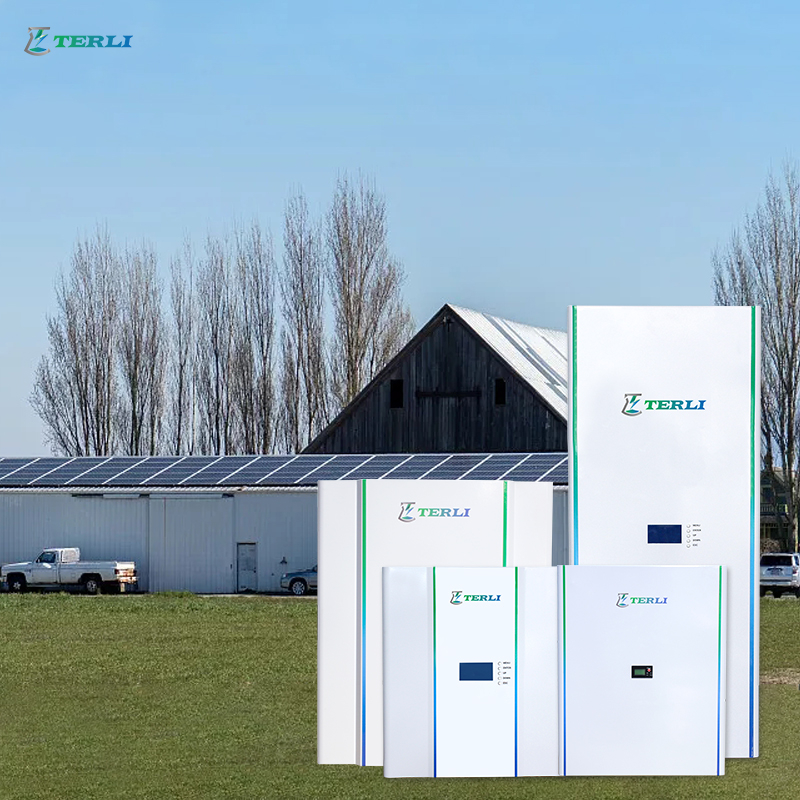

Key Specifications/Special Features: Solar home energy Lithium Rechargeable Battery
Model Number: 200ah
Battery Cell: Terli 200ah
Brand: Terli
Battery Type: Lithium iron phosphate battery ( LiFePO4 )
Voltage: 48V(customized available)
Capacity: 200Ah (customized available)
Guarantee: 5 years
| Quantity: | |
|---|---|
200ah
Terli
Product Description
Item
Terli 48V 200Ah
Nominal Voltage(V): 48
Nominal Capacity(AH): 200
Charging voltage Max.(V): 54.75
Continue charging current Max.(A): ≤200
End of discharging voltage Min.(V): 30
Continue discharging current Max.(A): ≤200
Operation temp. (Charging): 0℃~45℃
Operation temp. (Discharging): -20℃~60℃
Communication: RS232、RS485
Terminal: Andson SB175 （Customizable）
Warrenty: 5~10 years
Certification: CE CB UL TUV BIS
MOQ: 1PCS
Model | Helios | |||
Battery Type | LiFe PO4 | |||
Battery Module | Helios 3 | Helios 5 | Helios 7 | Helios 10 |
Battery Capacity (Ah) | 60 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power（kW） | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight（Kg） | 41 | 56 | 81 | 98 |
Dimension (L*W*H mm) | 350*300*180 | 700*580*210 | ||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp.Range (°C) | -20~50 | |||
Calendar Life (Cycles) | 6000@25°C,80%DOD | |||
Nominal Voltage(V) | 51.2 | |||
Protection Level | IP54 | |||
| Communication | CAN/RS485 | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |||
Monitoring & Protection | BMS | |||
| HMI | LCD | |||
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
Product Description
Item
Terli 48V 200Ah
Nominal Voltage(V): 48
Nominal Capacity(AH): 200
Charging voltage Max.(V): 54.75
Continue charging current Max.(A): ≤200
End of discharging voltage Min.(V): 30
Continue discharging current Max.(A): ≤200
Operation temp. (Charging): 0℃~45℃
Operation temp. (Discharging): -20℃~60℃
Communication: RS232、RS485
Terminal: Andson SB175 （Customizable）
Warrenty: 5~10 years
Certification: CE CB UL TUV BIS
MOQ: 1PCS
Model | Helios | |||
Battery Type | LiFe PO4 | |||
Battery Module | Helios 3 | Helios 5 | Helios 7 | Helios 10 |
Battery Capacity (Ah) | 60 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power（kW） | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight（Kg） | 41 | 56 | 81 | 98 |
Dimension (L*W*H mm) | 350*300*180 | 700*580*210 | ||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp.Range (°C) | -20~50 | |||
Calendar Life (Cycles) | 6000@25°C,80%DOD | |||
Nominal Voltage(V) | 51.2 | |||
Protection Level | IP54 | |||
| Communication | CAN/RS485 | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |||
Monitoring & Protection | BMS | |||
| HMI | LCD | |||
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
