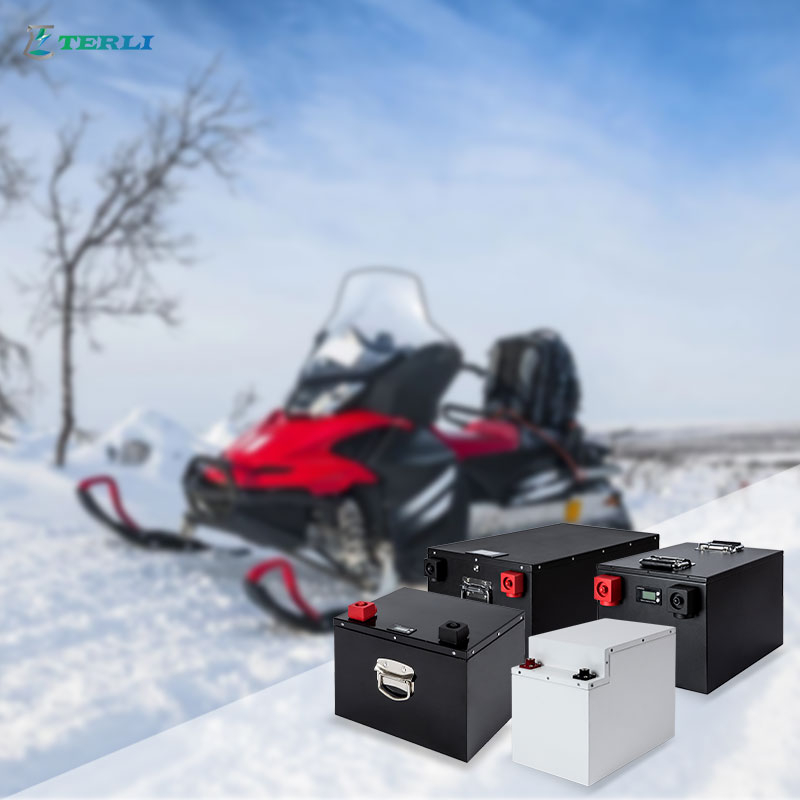

Solar Power Phosphate Portable 48V Lithium Battery

With the widespread use of iron‐lithium batteries in the household energy storage industry, high performance, high reliability, and high cost performance are required for battery pack.
This product is a battery pack specifically designed for household energy storage and can be widely used in household energy storage, Industrial and commercial energy storage.
Terli 48V lifepo4 battery has built‐in BMS battery management system, which can manage and monitor cells information including voltage, current and temperature. What's more, BMS can balance cells charging and discharging to extend cycle life.
Multiple battery packs can connected in parallel to expand capacity and power in parallel for larger capacity and longer power supporting duration requirements.
Availability:
Quantity:
  • 150ah

  • Terli

features:

*The whole module is non‐toxic, non‐polluting and environmentally friendly;

*Cathode material is made from LiFePO4 with safety performance and long cycle life;

* Battery management system (BMS) has protection functions including over‐discharge, over‐charge, over‐current ,high/low temperature and cell balancing;


*The battery pack can automatically manage charge and discharge state and balance current and voltage of each cell;


* Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power

* Adopted self‐cooling mode rapidly reduced system entire noise;

* The module has less self‐discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge;


* Working temperature range is from ‐10ºCto 50ºC, (Charging 0~50ºC; discharging ‐10~50ºC) with excellent discharge performance and cycle life;


* Small size and light weight, standard  designed module is comfortable for installation and maintenance;



  • 48V-整体_01






Model

48V

Battery Type

LiFe PO4

Battery Module

TY-48-200

Battery Capacity (Ah)

200AH

Nominal Battery Energy (kWh)

9.6

Nominal Voltage (V)

51.2V

Nominal Output Current (A)

100

Weight (Kg)

72

Dimension (L*W*H mm)

580*370*230

Package Dimension (L*W*H mm)

620*410*270

Working Voltage (V)

44.8~58.4

Operating Temp.Range (°C)

-20~50

Calendar Life (Cycles)

6000@25°C,80%DOD

Protection Level

IP54

Terminal

Anderson Or Other

Certification & Safety Standard

TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited

Monitoring & Protection

BMS

Display LCD

48V-整体_0348V-整体_0248V-整体_0448V-整体_0648V-整体_09
