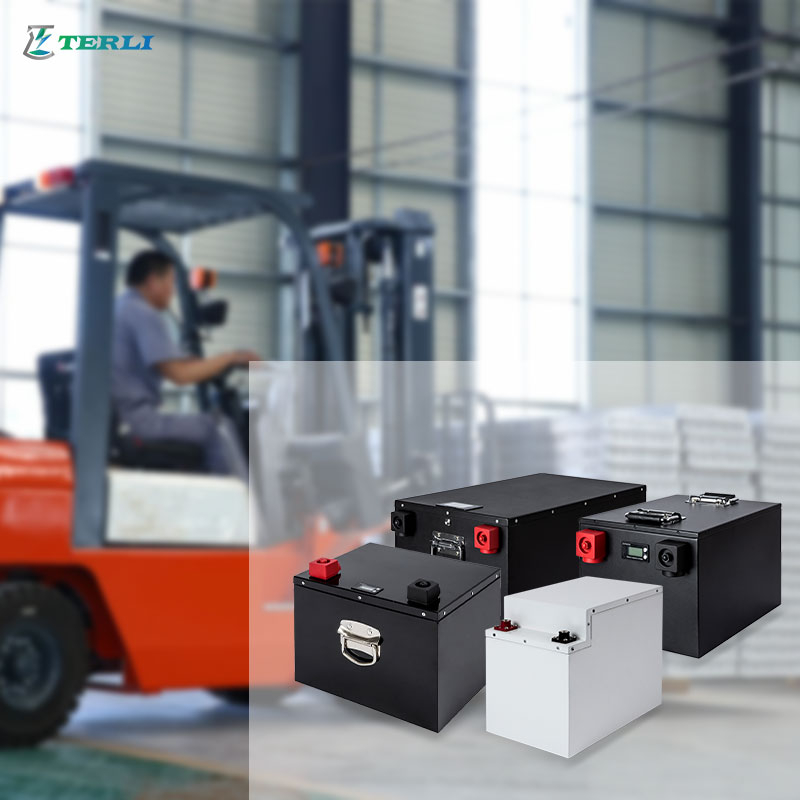

Solar Power Phosphate Custom 48V Lithium Battery

1:Performance:high voltage and light weight make motors acceleration speed performance better
2:High-quality built-in battery management system to protect the battery from short circuit, overcharge, overdischarge and overcurrent.
3:Waterproof shell, which can be installed in most locations, has the functions of anti-vibration and anti-shock, and has small size and light weight.
4:The battery pack uses high-quality batteries with long service life, deep discharge recovery, long service life and excellent performance.
5:This lithium-ion battery pack has an excellent cycle life: more than 3000 cycles at 80% DOD, no acid (no spillage or leakage problems):
6:It can run well under different temperature environment condition
Availability:
Quantity:
  • 100ah

  • Terli

•High lifespan: 3000 cycles and more

•Deep discharge allowed up to 100 %

•SUS316 stainless steel case for good protection

•Embedded BMS (Battery Management System) : improve lifespan AND secure the battery

•No Lead, no rare earths, no acid, no degassing

•Calendar life > 10 years

•Excellent temperature robustness (-20 °C up to +60 °C)

•Constant power during discharge (very low internal resistance)

•Very low Peukert's losses (energy efficiency >98 %)

•Very low self discharge (<3 % per month)

•No memory effect

•About 50 % lighter and 40% smaller than equivalent Lead-AGM battery with same usable energy

•Certification : CE, RoHS, UN 38.3

Commucation mode:CAN+RS485+Bluetooth



  • 48V-整体_01


Model

48V

Battery Type

LiFe PO4

Battery Module

TY-48-200

Battery Capacity (Ah)

200AH

Nominal Battery Energy (kWh)

9.6

Nominal Voltage (V)

51.2V

Nominal Output Current (A)

100

Weight (Kg)

72

Dimension (L*W*H mm)

580*370*230

Package Dimension (L*W*H mm)

620*410*270

Working Voltage (V)

44.8~58.4

Operating Temp.Range (°C)

-20~50

Calendar Life (Cycles)

6000@25°C,80%DOD

Protection Level

IP54

Terminal

Anderson Or Other

Certification & Safety Standard

TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited

Monitoring & Protection

BMS

Display LCD

48V-整体_0348V-整体_0248V-整体_0448V-整体_0648V-整体_09
