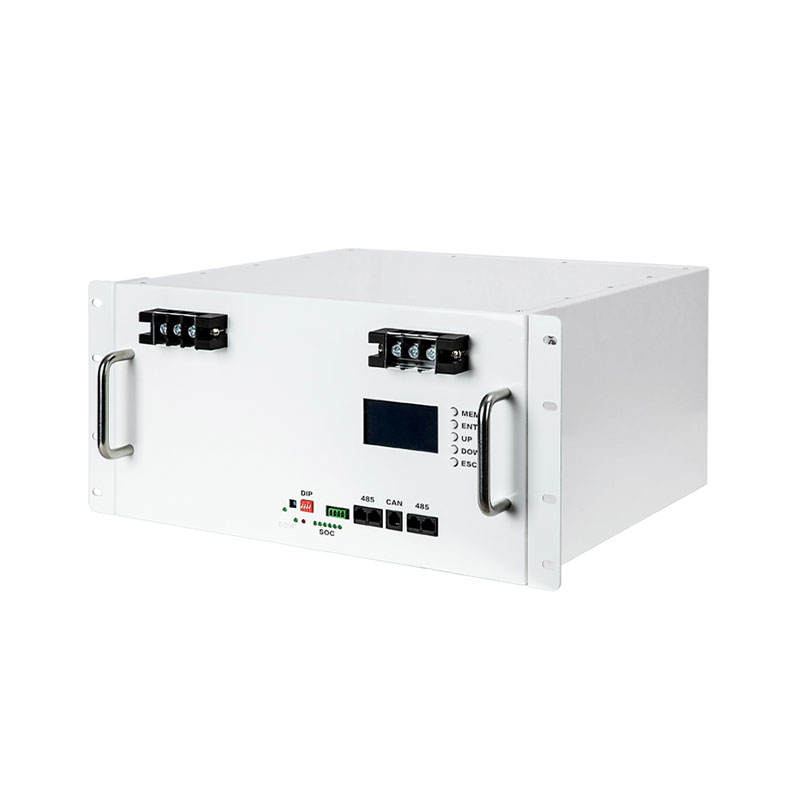

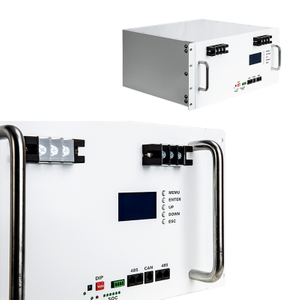

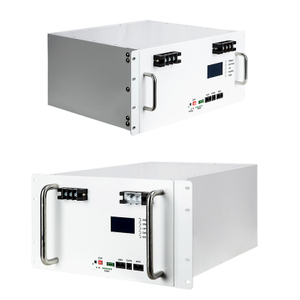

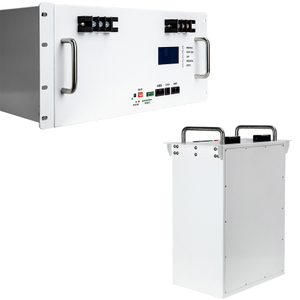

Pack X

Availability:
Quantity:

Main Features:

  • Terli brand factory:  The most advanced battery can ensure a longer service life and excellent discharge performance. We have a professional R&D team and are committed to providing customers with perfect power solutions.

  • Unparalleled portability:  Terli 48V 50/100/150/200AH environmental protection lithium iron phosphate battery is only 1/3 the weight of lead acid, so when considering towing or mobility, it is an unquestionable choice for RV, marine and off-grid applications.

  • Longer service life: Terli  48V 50/100/150/200AH environmental protection lithium iron phosphate battery can provide 2500-7000 cycles and a 10-year lifespan, while a typical lead-acid chemical process can provide 200-500 cycles and a 3-year lifespan.

  • High efficiency power:   Terli 48V 50/100/150/200AH environmental protection lithium iron phosphate batterycan maintain a capacity above 12V, and can use up to 95% of the capacity. Compared with the operation, the utilization rate of the lead-acid battery is only 50%, which can greatly improve the operation time .

  • Comprehensive protection:  The unique built-in battery management system (BMS) of the lithium battery protects it from overcharge, deep discharge, overload, overheating and short circuit, and low self-discharge rate, thus ensuring maintenance-free for up to 1 year storage. The built-in low temperature cut-off function prevents charging at temperatures below 23°F (-5°C).


Model

Power Pack

Battery Type

LiFe PO4

Battery Module

3kWh

5kWh

7kWh 10kWh

Battery Capacity (Ah)

60

100

150 202

Nominal Battery Energy (kWh)

3

5.1

7.6 9.6

Max Output Power(kW)

2.4

4.8 7.2 10.3

Net Weight(Kg)

40

53

70 83
Dimension (L*W*H mm ) 19inch 4U 19inch 5U 19inch 5U 19inch 5U

Working Voltage (V)

43.2~58.4

Operating Temp.Range (°C)

-20~50

Calendar Life (Cycles)

6000@25°C,80%DOD

Nominal Voltage(V)

51.2

Protection Level

IP54

Communication CAN/RS485

Certification & Safety Standard

TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited

Monitoring & Protection

BMS
HMI LCD
