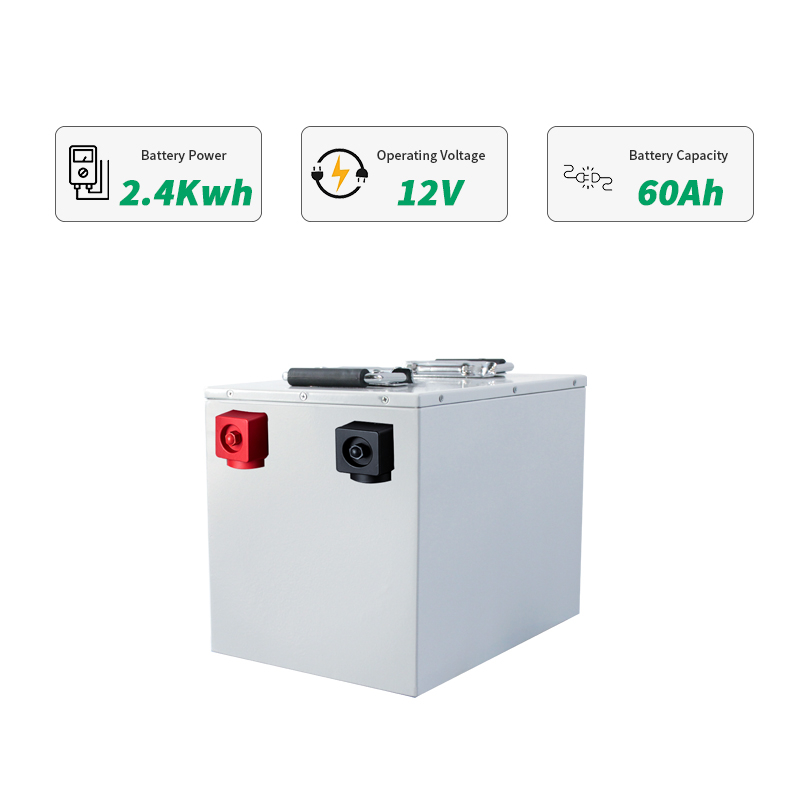

60ah
Terli
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Model | 12V | ||
Battery Type | LiFe PO4 | ||
Battery Module | TY-12-100 | TY-12-150 | TY-12-200 |
Battery Capacity (Ah) | 100 AH | 150AH | 200AH |
Nominal Battery Energy (kWh) | 1.2 | 1.8 | 2.4 |
Nominal Voltage (V) | 12.8V | ||
Nominal Output Current (A) | 50 | 75 | 100 |
Weight (Kg) | 12.16 | 15.5 | 18.9 |
Dimension (L*W*H mm) | 270*170*230 | 240*205*190 | 270*180*230 |
Package Dimension (L*W*H mm) | 310*210*270 | 280*245*230 | 310*220*280 |
Working Voltage (V) | 11.2-14.6 | ||
Operating Temp.Range (°C) | -20~50 | ||
Calendar Life (Cycles) | 6000@25°C,80%DOD | ||
Protection Level | IP54 | ||
Terminal | Anderson Or Other | ||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | ||
Monitoring & Protection | BMS | ||
