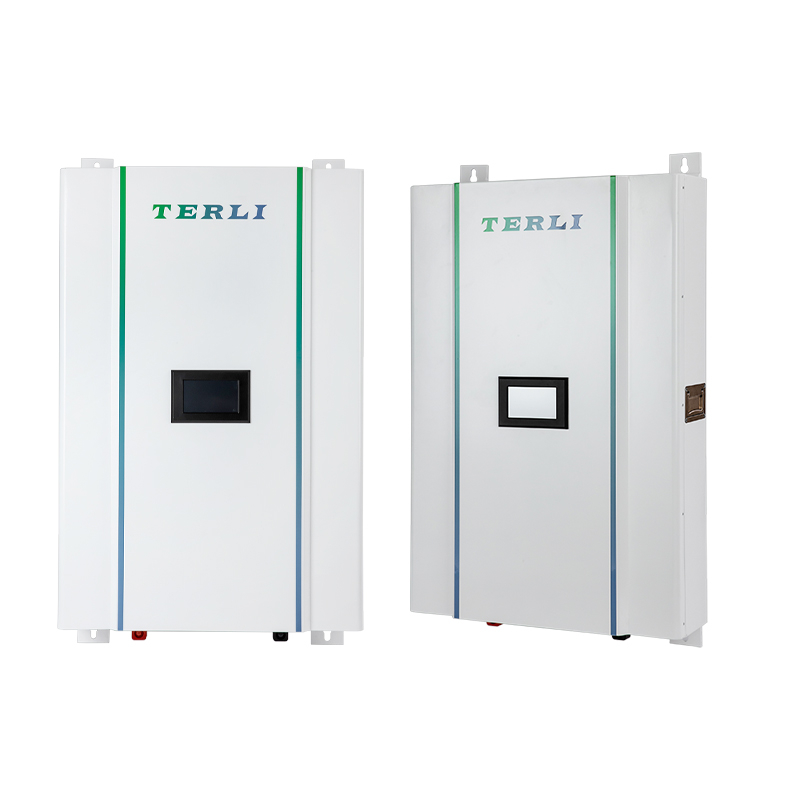

Li-ion Battery High Quality Powerwall Industrial

1. Iron Phosphate-lithium Battery Powerwall ： More than 6000 cycle times

2. Higher energy density,smaller volume for household.Long

3. warranty period：3 years~10years

4. Support Connected in parallel mode for expansion

5. Photovoltaic system：this battery pack is designed for household photovoltaic systems.

Key Features:

1. Equipped with intelligent BMS for each battery pack to manage modules effectively

2. Compared with the traditional module

3. Safe lithium iron phosphate battery cell

4. Compact size ultralight module

5. Light weight: about 40%~50% of the weight of lead-acid batteries.

Model	Helios
Battery Type	LiFe PO4
Battery Module	Helios 3	Helios 5	Helios 7	Helios 10
Battery Capacity (Ah)	60	100	150	202
Nominal Battery Energy (kWh)	3	5.1	7.6	9.6
Max Output Power（kW）	2.4	4.8	7.2	10.3
Net Weight（Kg）	41	56	81	98
Dimension (LWH mm)	350300180	700580210
Working Voltage (V)	43.2~58.4
Operating Temp.Range (°C)	-20~50
Calendar Life (Cycles)	6000@25°C,80%DOD
Nominal Voltage(V)	51.2
Protection Level	IP54
Communication	CAN/RS485
Certification & Safety Standard	TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited
Monitoring & Protection	BMS
HMI	LCD
