1. Lifepo4 battery pack is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.
2.The environmentally friendly lithium ion battery configured with high-performance BMS. BMS with improted chips and MOS,with balancing function and dual protection, has a wide range of performance and application advantages compared with conventional battery.
3. Have low internal resistance and high, flat voltage characteristics during strong current discharge, which ensures a wider application field.
4. All they are gradeA cells, Longer cycle life, full inspection before shipment.
| Quantity: | |
|---|---|
200ah
Terli
Product Description

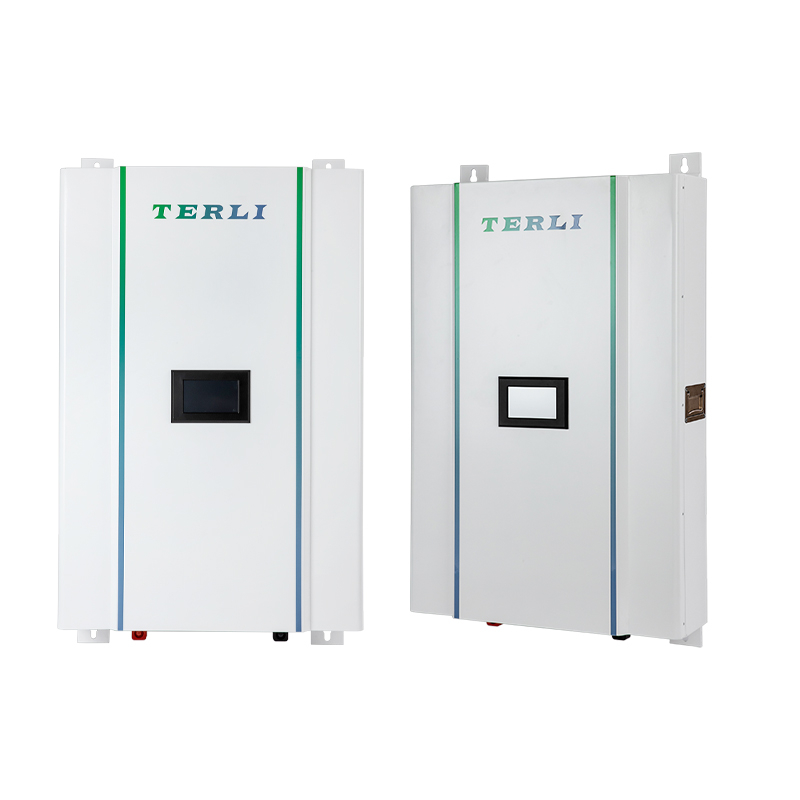

lithium battery portable solar generator is a new generation of solar energy storage product independently researched and developed by Terli factory . It has the following characteristics:
Small size and light weight
Compared with the same capacity battery storage solar energy product, the volume and weight can be reduced by 1/3, more convenient
for transportation and saves freight.
The latest design of lithium battery storage solar solution
It adopts 6000 cycles of high power lithium battery and has a service life up to 3~10 years.
MPPT controller
Independent research and development of MPPT controller solution, greatly improving the charging efficiency more than 20%.
Easy to use
Simple interface design, easy installation, multiple output functions for options, more convenient to use.
Easy maintenance
The rear cover is detachable for easy maintenance and battery replacement.
Model | Helios | |||
Battery Type | LiFe PO4 | |||
Battery Module | Helios 3 | Helios 5 | Helios 7 | Helios 10 |
Battery Capacity (Ah) | 60 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power（kW） | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight（Kg） | 41 | 56 | 81 | 98 |
Dimension (L*W*H mm) | 350*300*180 | 700*580*210 | ||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp.Range (°C) | -20~50 | |||
Calendar Life (Cycles) | 6000@25°C,80%DOD | |||
Nominal Voltage(V) | 51.2 | |||
Protection Level | IP54 | |||
| Communication | CAN/RS485 | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |||
Monitoring & Protection | BMS | |||
| HMI | LCD | |||
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
Product Description
lithium battery portable solar generator is a new generation of solar energy storage product independently researched and developed by Terli factory . It has the following characteristics:
Small size and light weight
Compared with the same capacity battery storage solar energy product, the volume and weight can be reduced by 1/3, more convenient
for transportation and saves freight.
The latest design of lithium battery storage solar solution
It adopts 6000 cycles of high power lithium battery and has a service life up to 3~10 years.
MPPT controller
Independent research and development of MPPT controller solution, greatly improving the charging efficiency more than 20%.
Easy to use
Simple interface design, easy installation, multiple output functions for options, more convenient to use.
Easy maintenance
The rear cover is detachable for easy maintenance and battery replacement.
Model | Helios | |||
Battery Type | LiFe PO4 | |||
Battery Module | Helios 3 | Helios 5 | Helios 7 | Helios 10 |
Battery Capacity (Ah) | 60 | 100 | 150 | 202 |
Nominal Battery Energy (kWh) | 3 | 5.1 | 7.6 | 9.6 |
Max Output Power（kW） | 2.4 | 4.8 | 7.2 | 10.3 |
Net Weight（Kg） | 41 | 56 | 81 | 98 |
Dimension (L*W*H mm) | 350*300*180 | 700*580*210 | ||
Working Voltage (V) | 43.2~58.4 | |||
Operating Temp.Range (°C) | -20~50 | |||
Calendar Life (Cycles) | 6000@25°C,80%DOD | |||
Nominal Voltage(V) | 51.2 | |||
Protection Level | IP54 | |||
| Communication | CAN/RS485 | |||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | |||
Monitoring & Protection | BMS | |||
| HMI | LCD | |||
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
