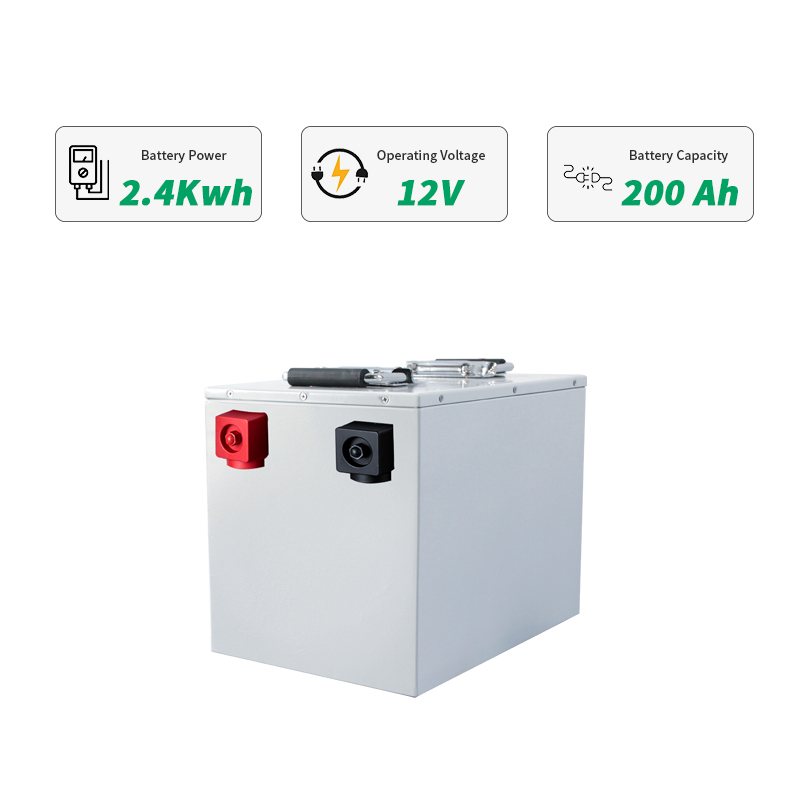

12V200ah
Terli
Advantage:
Low self-discharge
Free of charge memory
Steady discharge and charge performance
Outstanding thermal stability
Wide temperature performance
Short circuit protection
Over charge and over discharge protection
Over current protection
Easy carrying and installation - can be carried and installed in any direction
Fast charging - about 4~6 hours to be fully charged
Lighter weight - 1/2~1/4 in weight compared to LA batteries
Require no change to a lead acid battery charging system
Better safety - mild warm, no explosion and firing, free of leakage
Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals
No gasses during charge, free of leakage and pollution
Model | 12V | ||
Battery Type | LiFe PO4 | ||
Battery Module | TY-12-100 | TY-12-150 | TY-12-200 |
Battery Capacity (Ah) | 100 AH | 150AH | 200AH |
Nominal Battery Energy (kWh) | 1.2 | 1.8 | 2.4 |
Nominal Voltage (V) | 12.8V | ||
Nominal Output Current (A) | 50 | 75 | 100 |
Weight (Kg) | 12.16 | 15.5 | 18.9 |
Dimension (L*W*H mm) | 270*170*230 | 240*205*190 | 270*180*230 |
Package Dimension (L*W*H mm) | 310*210*270 | 280*245*230 | 310*220*280 |
Working Voltage (V) | 11.2-14.6 | ||
Operating Temp.Range (°C) | -20~50 | ||
Calendar Life (Cycles) | 6000@25°C,80%DOD | ||
Protection Level | IP54 | ||
Terminal | Anderson Or Other | ||
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited | ||
Monitoring & Protection | BMS | ||
Q1: What products do you offer?
Our main products is Lithium Ion Batteries. Now we can offer Home Energy Storage, Telecom Battery， Battery Pack，Lithium Battery 24V 48V etc.
Q2: How can I get a sample to check your quality?
If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q3: Can I have the products with my own logo?
Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q4: How long can I expect to get the sample?
The samples will be ready for delivery in 3~5days after we receive the payment.
Q5:Can you give me a discount?
Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.
