Key Features：
1:Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
2:Free of maintenance .
3:Built-in automatic protection for over-charge, over discharge, over current and over temperature.
4: Internal cell balancing.
5:Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
6:Can be charged using most standard lead-acid charges (set).
7:Wider temperature range:-20℃~60℃.
8:Support for Series application expansion (up to 51.2V) and two in parallels.
Applications：
Wheelchairs and scooters
Solar/wind energy storage
Back-up power for small UPS
Golf trolleys & buggies
Electric bikes

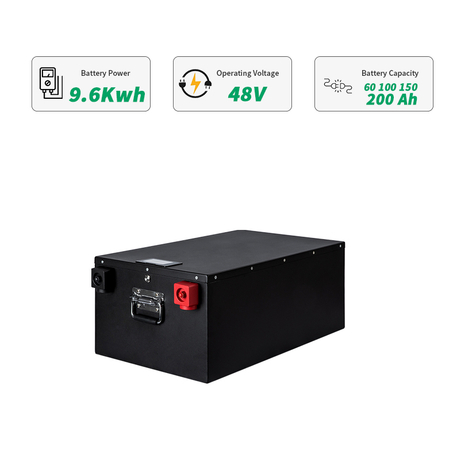

Model | 48V |
Battery Type | LiFe PO4 |
Battery Module | TY-48-200 |
Battery Capacity (Ah) | 200AH |
Nominal Battery Energy (kWh) | 9.6 |
Nominal Voltage (V) | 51.2V |
Nominal Output Current (A) | 100 |
Weight (Kg) | 72 |
Dimension (L*W*H mm) | 580*370*230 |
Package Dimension (L*W*H mm) | 620*410*270 |
Working Voltage (V) | 44.8~58.4 |
Operating Temp.Range (°C) | -20~50 |
Calendar Life (Cycles) | 6000@25°C,80%DOD |
Protection Level | IP54 |
Terminal | Anderson Or Other |
Certification & Safety Standard | TUV/CE/EN62619/IEC62040/UN38.3/CECAccredited |
Monitoring & Protection | BMS |

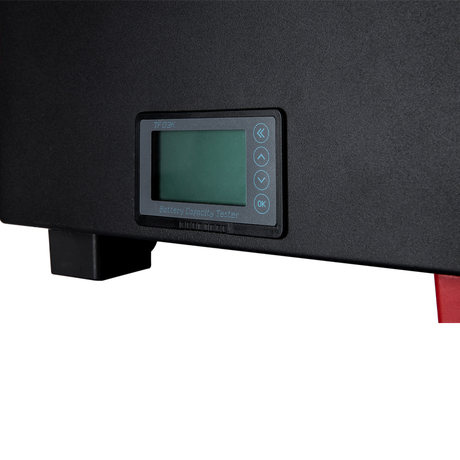

| Display | LCD |
